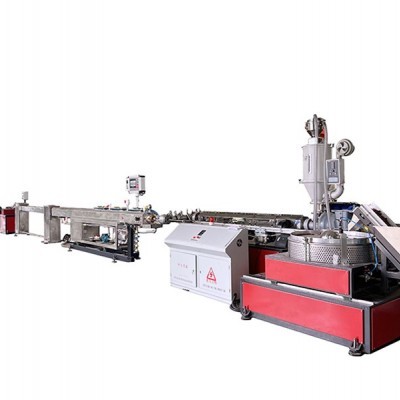

内镶圆柱滴头滴灌管生产线
一：Production line component (生产线组成)
No. | Device | Quantity |
1 | Dripper transferring systerm 滴头输入系统 | 1 set |
2 | Automatic material feeding and drying system | 1 set |
3 | SJ-75×30/1 single screw extruder 75*30单螺杆挤出机 | 1 pcs |
4 | Mold（the durable filter is included） 模具（包括换网） | 1 set |
5 | Vacuum water tank 真空定径箱 | 1 set |
6 | Cooling water tank 冷却水箱 | 1 set |
7 | Tractor 牵引机 | 1 set |
8 | Punching system 打孔系统 | 1 set |
9 | Winding machine 卷取机 | 1 set |
10 | Electric cabinet 电器柜 | 2 set |

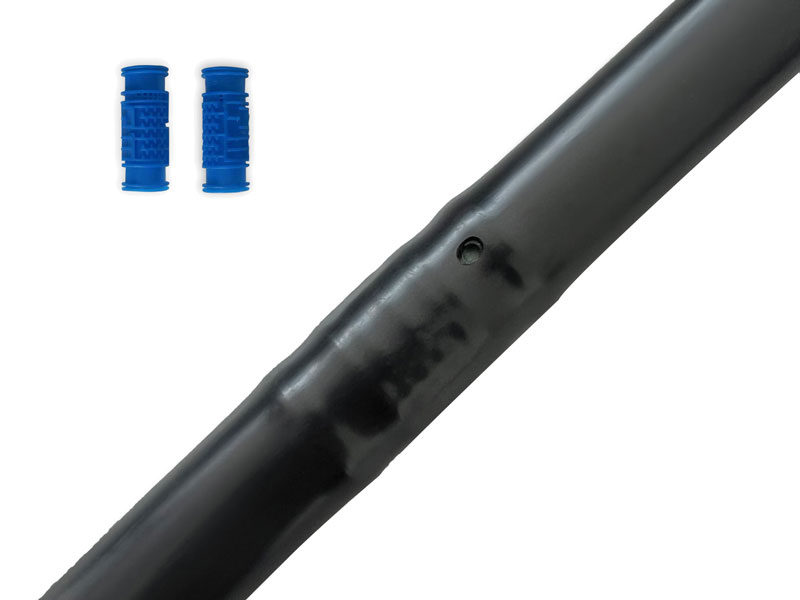

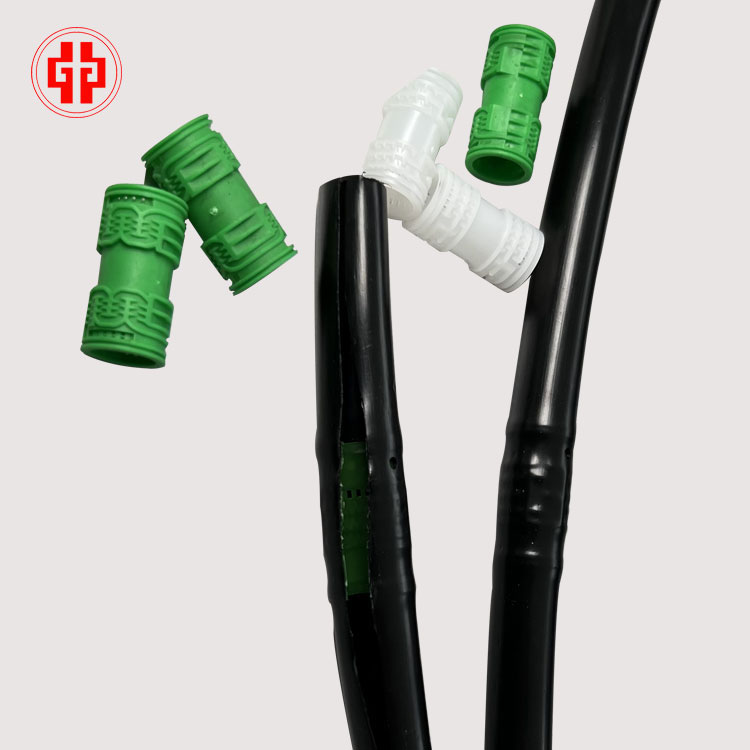

内镶圆柱滴灌管
二：主要技术参数（Main technical parameters）
Production speed 生产速度 | 0-60m/min |
Power for dripper transfer systerm 滴头输送功率 | 750w |
Speed for dripper transfer systerm 滴头输送速度 | <400个/min |
Punching speed 打孔速度 | <400个/min |
Water dripping space 滴水间距 | 10cm-50cm（adjustable) |
Water dripping volume 滴水量 | 2.5-4.0L/H(adjustable) |
Specification for tape 制品规格 | Ø16mm,20mm |
Thickness of the tape 制品厚度 | 0.5-1.0mm（adjustable） |
Materials 原料配方 | LDPE,HDPE |
Overall dimension 外形尺寸 | 30m*2.5m*3m |
Total weight 总重量 | 6000kg |
