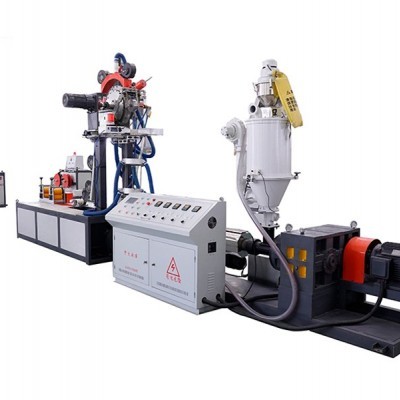

单翼迷宫式滴灌带生产线
一：Production line component (生产线组成)
No. | Device | Quantity |
1 | SJ-65/30 extruder | 1 set |
2 | Automatic material feeding and drying system | 1 set |
3 | Two layers die- head | 1 set |
4 | Sizing systerm | 1 set |

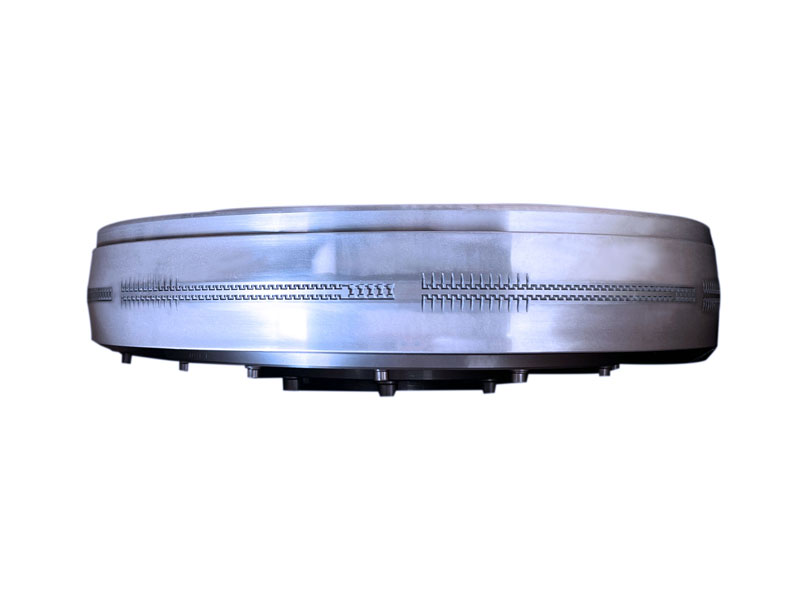

5 | Forming wheel 成型轮 | 1 set |
6 | Cooling systerm 冷却系统 | 1 set |
7 | Tractor | 1 set |
8 | Winding machine | 1 set |
9 | Electric cabinet | 1 set |

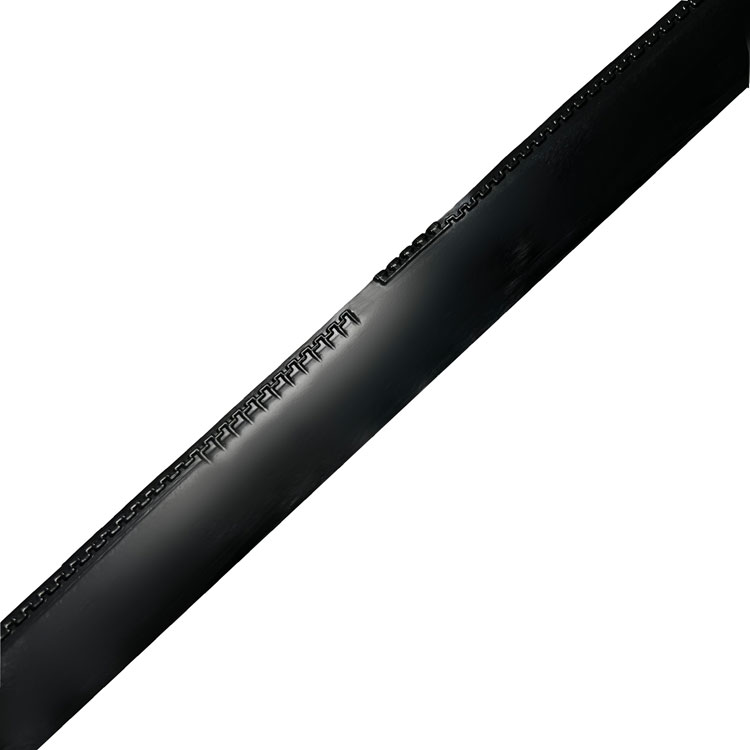

单翼迷宫式滴灌带
二：主要技术参数（Main technical parameters）
Production speed | 0-110m/min |
Diamter of forming wheel | Ø380 446 487 580 |
Two layers die head | AB die head |
Cooling systerm | Doulbe air ring cooling |
Specification for tape | Ø16 |
Thickness of the tape | 0.15-0.2mm（adjustable） |
Materials | LDPE,HDPE |
Overall dimension 外形尺寸 | 12m*1.5m*2.8m |
Total weight | 3000kg |
