起订：1台
供应：622台
发货：7天内
订货号
品牌
货号
型号
适用物料
应用领域
生产能力
主轴转速
进料粒度≤
电机功率
出料粒度
外形尺寸
重量
粉碎程度
物料含水量

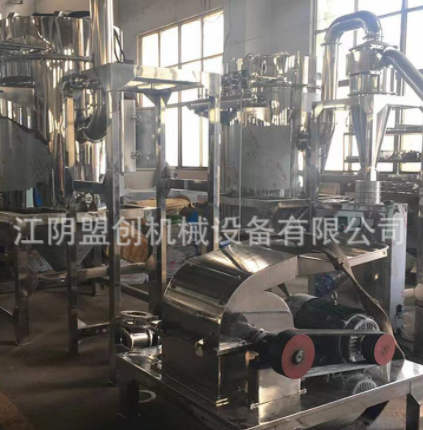

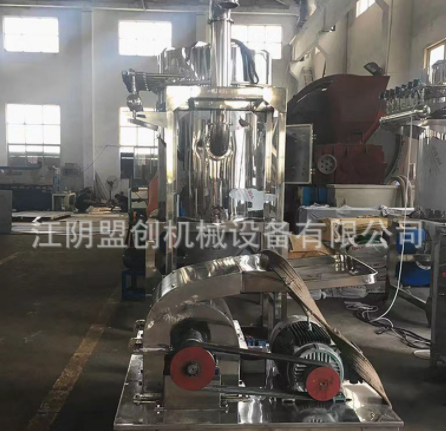

GFSJ系列高效粉碎机 GFSJ Series High Efficiency Mill
主要用途 Main Application
本机采用混合喷粉法原理设计研制而成，广泛适用于制药、食品、化工等行业的物料粉碎。
The machine is developed with the method of mixed powder jetting,which is widely applied for the material grinding for the trades of pharmaceutics,chemical and foodstuff,etc.
特点 Characteristics
本机结构简单，粉碎室拆装与清洗方便，具有运转平稳、移动方便、噪音低、粉碎效果好等优点。
The machine has a simple structure and is easy to be installed and dismantled and cleaned,with the features of stable running,convenient moving,low noise and high grinding efficiency,etc.
工作原理 Working Method
本机属高速运转机械，被粉碎物经高速刀片剪切获得粉碎，该机还可根据不同物料选用各种形状及尺寸不同的刀片，粉度大小通过更换筛选或调整速度获得。
The machine is a high speed running one.The target material is smashed by the cutting and grinding of high-speed knives,of which the figure and size of knives can be seletcted in accordance with different materials and the size of granules can be acquired by changing of the screen and regulating the speed.
技术参数 Technical Date
型号 Model | 8型 | 16型 | 32型 |
生产能力(kg/h) Capacity | 10-100 | 50-300 | 100-500 |
成品细度(mm) Fineness of finished products | 12-120 | 12-120 | 12-120 |
电机功率(kw) Power | 3 | 7.5 | 11 |
可调速度（rpm） Speed change | 2350-4360 | 1000-2400-4400 | 1000-2400-4400 |
重量（kg） Weight | 150 | 250 | 420 |
外形尺寸（mm）(长×宽×高) Overall Size（L×W×H） | 1050×670×1400 | 1200×900×1520 | 1300×1000×1600 |
